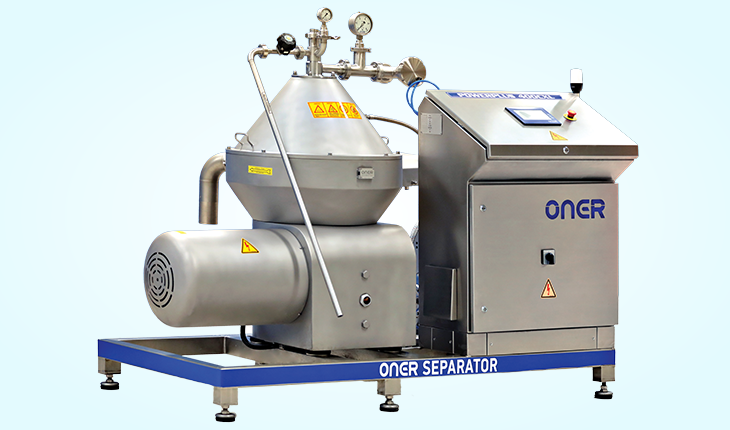

Oner Dairy Self Cleaning Machine provides high performance and yields,making it superior when comparing to another brands.Easy installation and pressure adjustment according to product can be counted as priority of machine.
info@onerseparator.com.tr
Why Oner Dairy Self Cleaning Machine?
Separation

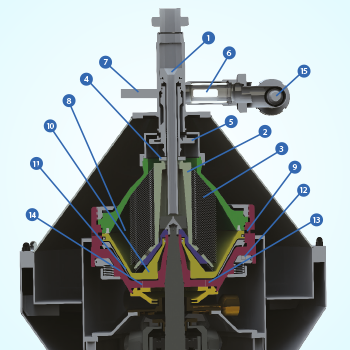

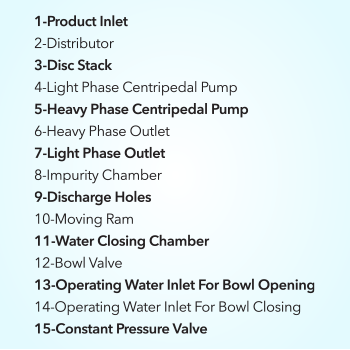

The product flows to the bowl through a feed pipe (1) and into the distributor (2). It then goes acceleration until it reaches the bowl rotating speed for separation. The distributor (2) then send the milk to the disk stack (3) where the separation between the light and heavy phase takes place. Light separated phase flows to the center due to its low density. Both phases rise in the disk stack and reach the two upper chambers of the bowl where two fixed centripetal turbines (4-5) convert kinetic energy to pressure energy,enabling product to convey outlet pipe with high pressure(6-7).Thanks to constant pressure valve the pressure is regulated according to product type (15)
Solid Discharge
The separated solids are collected in the inner wall of the bowl (8) and are periodically discharged through the discharge holes (9). The discharged solids are collected into an outer annular chamber connected to a damping sludge tank where they are drained away by gravity through a pipe. The pressure produced by water in chamber (11) keeps the hydraulically operated ram (10) in a closed position. By feeding water into pipeline (13), the bowl valve (12) allows water in chamber (11) to flow away; the product pressure pushes down the hydraulic ram and the solids are immediately ejected through the discharge holes (9). By stopping the opening water feed (13) and filling the closing water line (14) into the chamber opening (11), the hydraulic ram goes back to the closed position.
Automatic Control
The periodic solids discharge is carried out automatically by means of a PLC which controls the opening and closing water solenoid valves and the solenoid valves of the operating water circuit. Various automatic, independent working cycles may be selected to perform partial and/or total discharges during separation and cleaning procedures. By setting the PLC it is possible to adjust PLC
Performance
• Standardized cream: 25-45% fat content
• Cream accuracy: +/- 0.2%
• Standardized milk: from 0.5% up to raw milk fat content - 0.2%
• Milk accuracy: 0.03-0.05%
